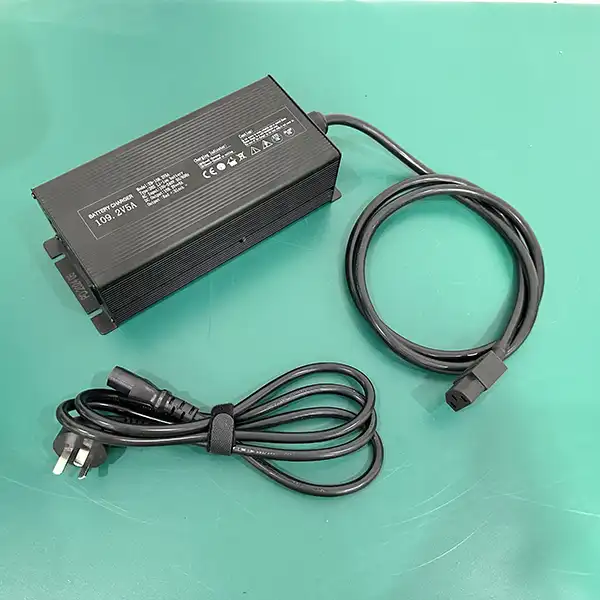

E9 900W Battery Charger
Model : E9
Max Power : 900W
Shell : Aluminium Alloy
Protection Level : IPx4
Input : 85-265Vac/40-70Hz
Power Factor : 0.98
Max Efficiency : ≥93％
Noise : ≤40dB
Operating temperature : -20°C~65°C
Storage temperature : -40°C~85°C
Ⅰ，Brief Introduction:
This charger adopts MCU and PWM,able to set the optimal charging curve according to battery information.With active PFC and LLC half-bridge circuit ,the charger is high-efficiency, more stable and more safer.Aluminum alloy shell and internal glue filling, to be sturdy and durable.Three-color LED indicator can be programmed for different charging states.The fan can adjust speed automatically.
Ⅱ，Common Output:
| Nominal Voltage | Lead Acid | LiFePO4 | Li-ion | Charging Current@110Vac | Charging Current@220Vac |
| 12V | 14.7V | 14.6V | 16.8V | 30A | 30A |
| 24V | 29.4V | 29.2V | 29.4V | 30A | 30A |
| 36V | 44.1V | 43.8V | 42V | 20A | 20A |
| 48V | 58.8V | 58.4V | 58.8V | 15A | 15A |
| 60V | 73.5V | 73V | 67.2V | 12A | 12A |
| 72V | 88.2V | 87.6V | 84V | 10A | 10A |
| 84V | 102.9V | 102.2V | 100.8V | 8A | 8A |
| 96V | 117.6V | 116.8V | 117.6V | 7A | 7A |
| Protections: | 1. Input undervoltage/overvoltage protection 2. Overheating protection 3. Output no-load protection 4. Output short circuit/reverse connection protection 5. Output overcurrent/overvoltage protection |
||||
Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests.
Ⅲ，Optional Functions:
- CAN / RS485
- Interlock
- External Indicator
- Reprogramming
- Shut Down/Restart
- 12V Power Supply
- Enable Loop
- Temp Sensor
- Analog
- Others
Ⅳ，Case Size:
Ⅴ，Color options:
Ⅵ，Hardware options:
1. Cover plate of charger is with mounting holes to be on-board.
2. With handle.
3. Others that you would like to add on charger.
Ⅶ，AC Cable and Plugs:
Independent AC cable.
Length of AC cable: 0.5m/1m/1.2m/1.5m/2.8m…..
Wire Gauge:3*1mm²/3*1.31mm²/3*1.5mm²…..
AC plugs:National standards (US EU AU UK….), Bare wire end, industrial plugs….

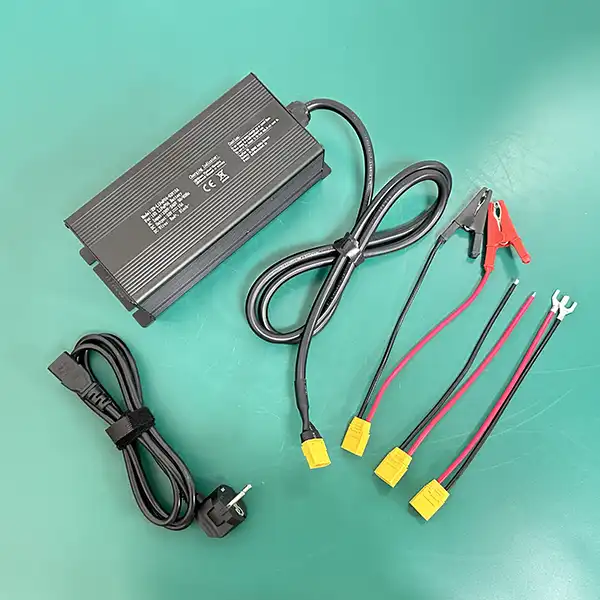

Ⅷ，DC Cable and Connectors:
Color of DC cable: Black, Green, Yellow…
Length of AC cable: 0.5m/1m/1.2m/1.5m/2.8m…..
Wire Gauge: 2*2.5mm² / 2*3.5mm²/2*4mm²…. (more wires if you choose some functions)
DC connectorss: Bare wire end, XT30/60/90, Andeson, REMA,Ring terminals,alligator clip….
