Golf cart Battery Charger
Suitable for various brands and models golf carts. There are mainly two types: 48 volt 15 ampere and 36 volt 18 ampere. More current and voltage can be customized according to battery information.

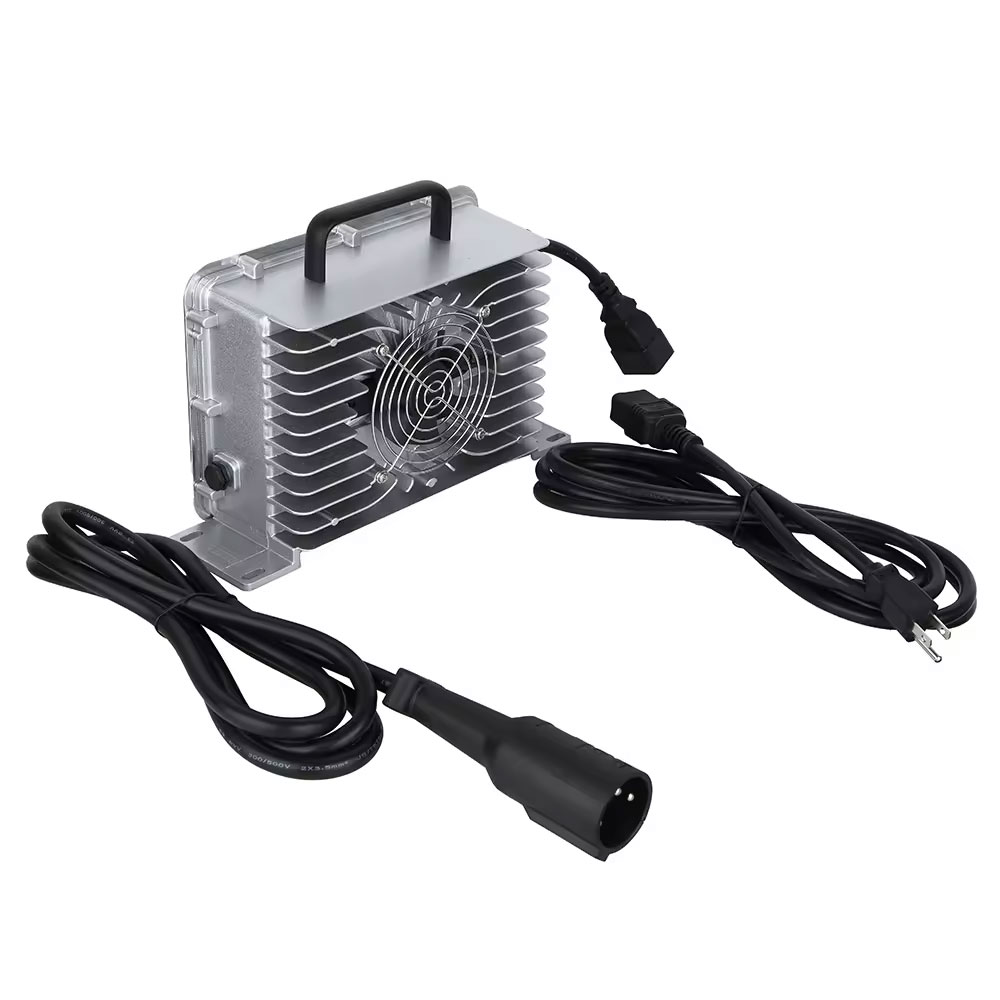

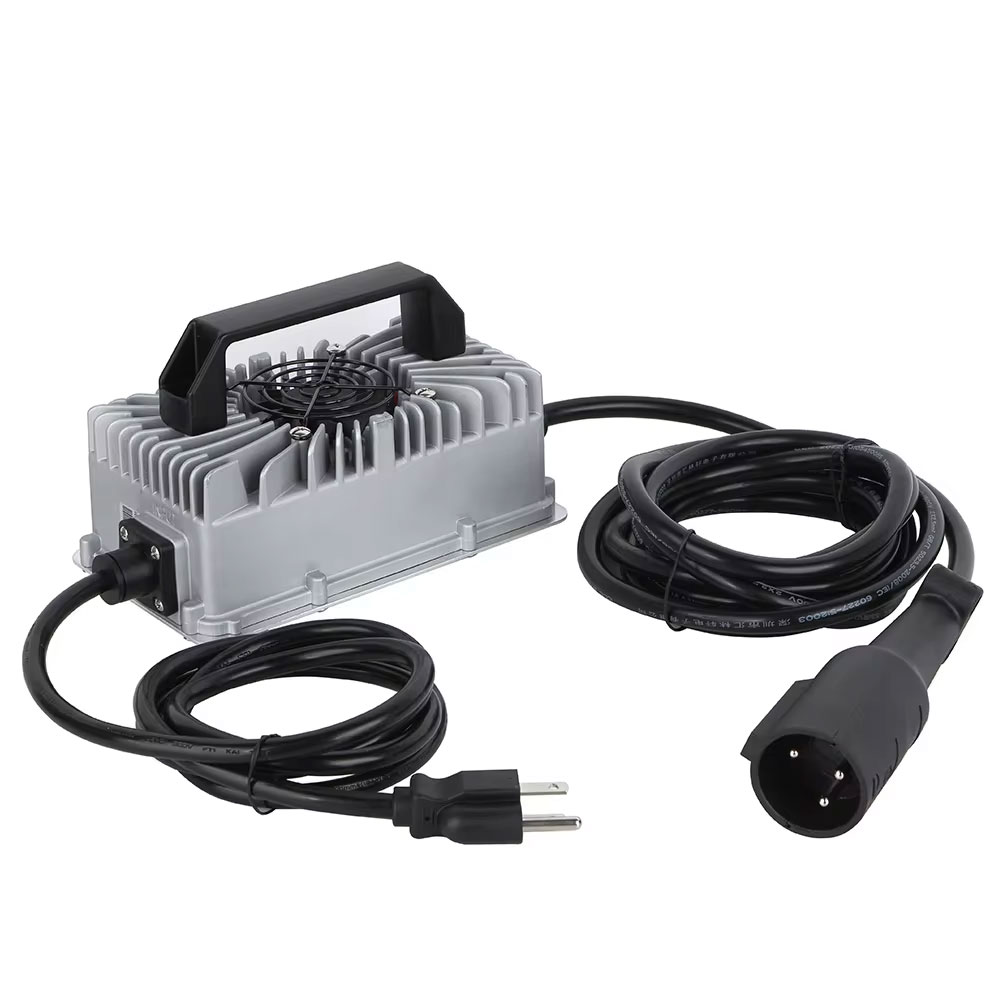

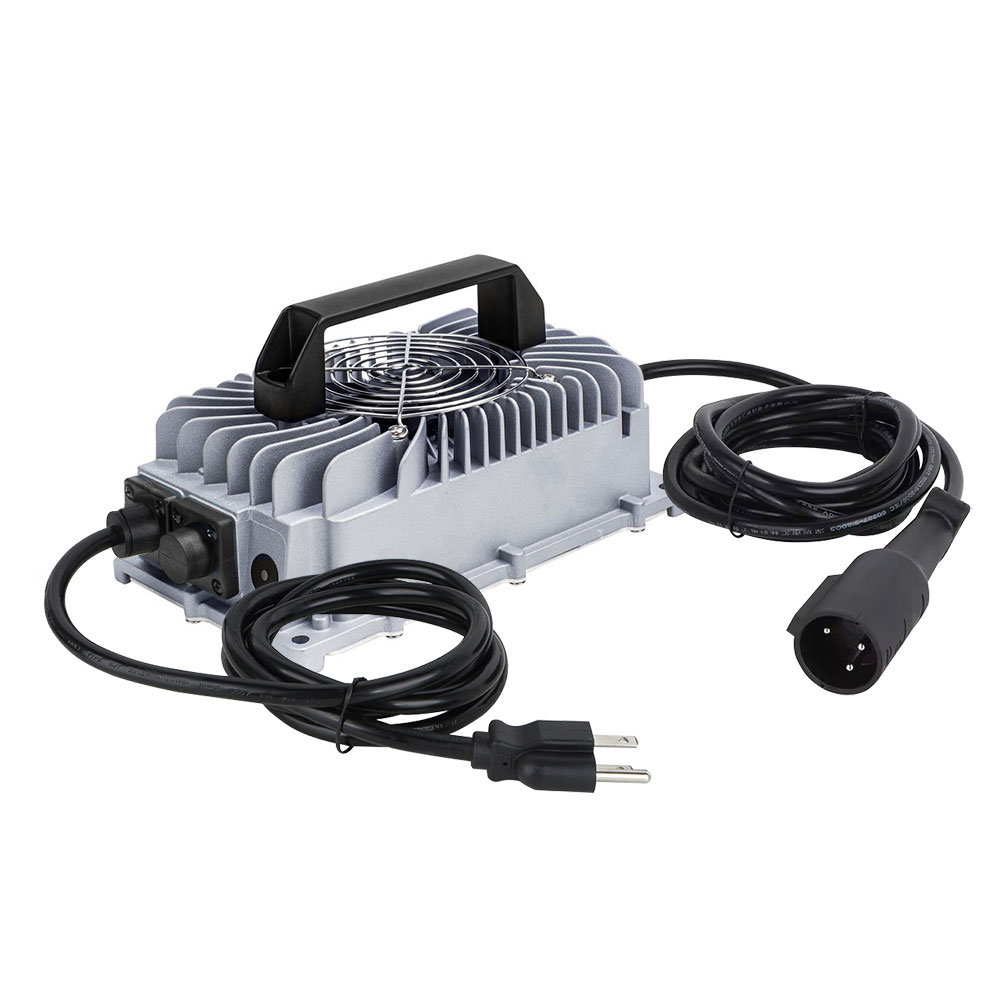

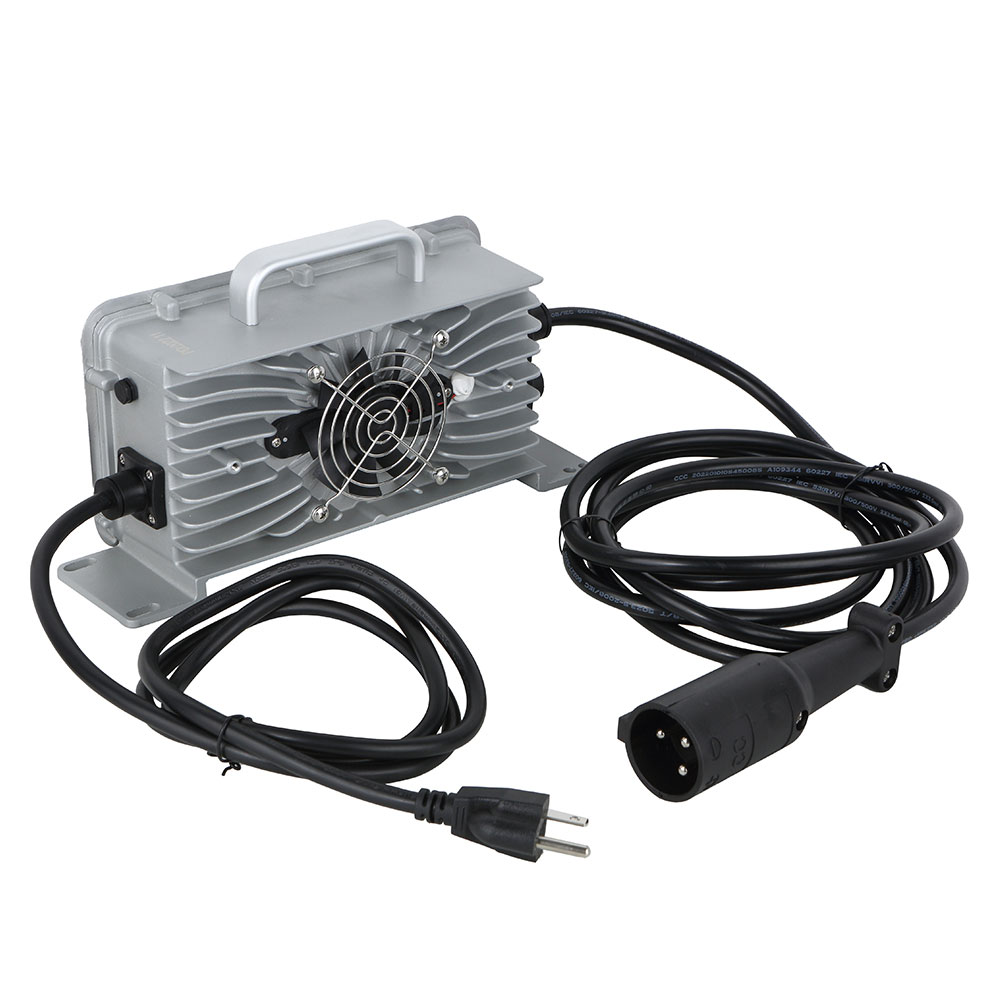

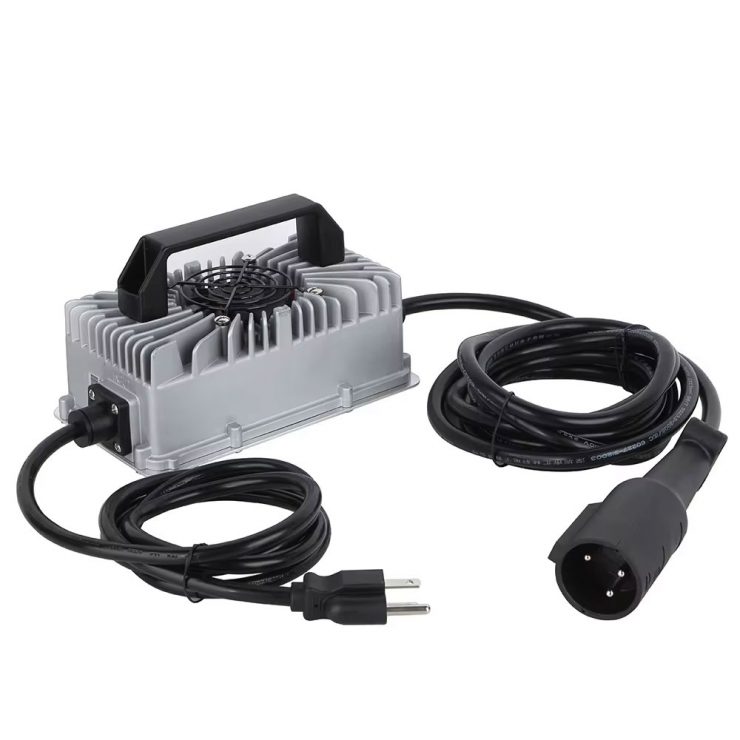

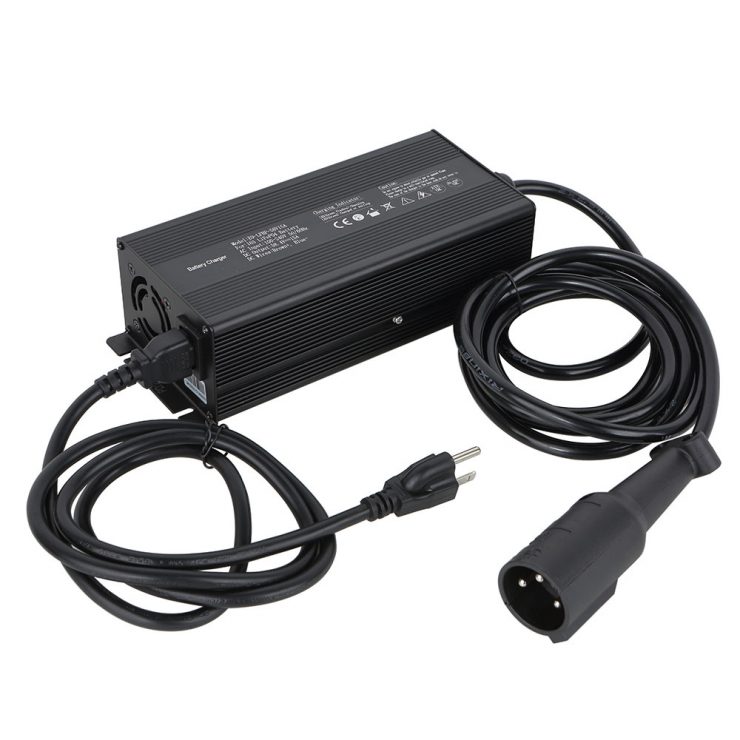

Model : E8 & E9 & E10 & E15 & E22
Max Power : 800W & 900W & 1000W & 1500W & 2200W
Shell : Aluminium Casting
Protection Level : IP66
Input : 85-265Vac/40-70Hz
Power Factor : 0.98
Max Efficiency : ≥93％
Noise : ≤40dB
Operating temperature : -20°C~65°C
Storage temperature : -40°C~85°C
Ⅰ，Brief Introduction:
This charger adopts MCU and PWM,able to set the optimal charging curve according to battery information.With active PFC and LLC half-bridge circuit ,the charger is high-efficiency, more stable and more safer.Fully sealed aluminum die-cast enclosure and internal padding,to be waterproof,dustproof and shockproof.Three-color LED indicator can be programmed for different charging states.The fan can adjust speed automatically.
Ⅱ，Common Output:
| Nominal Voltage | Lead Acid | LiFePO4 | Li-ion | Charging Current@110Vac | Charging Current@220Vac | ||||||||
| E8 | E9 | E10 | E15 | E22 | E8 | E9 | E10 | E15 | E22 | ||||
| 12V | 14.7V | 14.6V | 16.8V | 30A | 30A | 30A | 30A | 50A | 30A | 30A | 30A | 30A | 50A |
| 24V | 29.4V | 29.2V | 29.4V | 25A | 30A | 30A | 30A | 40A | 25A | 30A | 30A | 30A | 50A |
| 36V | 44.1V | 43.8V | 42V | 15A | 20A | 20A | 25A | 30A | 18A | 20A | 22A | 30A | 45A |
| 48V | 58.8V | 58.4V | 58.8V | 12A | 15A | 15A | 18A | 22A | 12A | 15A | 18A | 25A | 35A |
| 60V | 73.5V | 73V | 67.2V | 9A | 12A | 12A | 15A | 18A | 10A | 12A | 13A | 20A | 30A |
| 72V | 88.2V | 87.6V | 84V | 8A | 10A | 10A | 12A | 15A | 9A | 10A | 11A | 15A | 25A |
| 84V | 102.9V | 102.2V | 100.8V | 6A | 8A | 9A | 10A | 12A | 7A | 8A | 9A | 13A | 20A |
| 96V | 117.6V | 116.8V | 117.6V | 5A | 7A | 8A | 9A | 11A | 6A | 7A | 8A | 12A | 18A |
| Protections: | 1. Input undervoltage/overvoltage protection 2. Overheating protection 3. Output no-load protection 4. Output short circuit/reverse connection protection 5. Output overcurrent/overvoltage protection |
||||||||||||
Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests.
Ⅲ，Optional Functions:
- CAN / RS485
- Interlock
- External Indicator
- Reprogramming
- Shut Down/Restart
- 12V Power Supply
- Enable Loop
- Temp Sensor
- Analog
- Others
Ⅳ，Case Size:
Ⅴ，Color options:
Ⅵ，Hardware options:
1. Cover plate of charger is with mounting holes to be on-board.
2. With handle.
3. Others that you would like to add on charger.
Ⅶ，AC Cable and Plugs:
Independent AC cable.
Length of AC cable: 0.5m/1m/1.2m/1.5m/2.8m…..
Wire Gauge:3*1mm²/3*1.31mm²/3*1.5mm²…..
AC plugs:National standards (US EU AU UK….), Bare wire end, industrial plugs….
Ⅷ，DC Cable and Connectors:

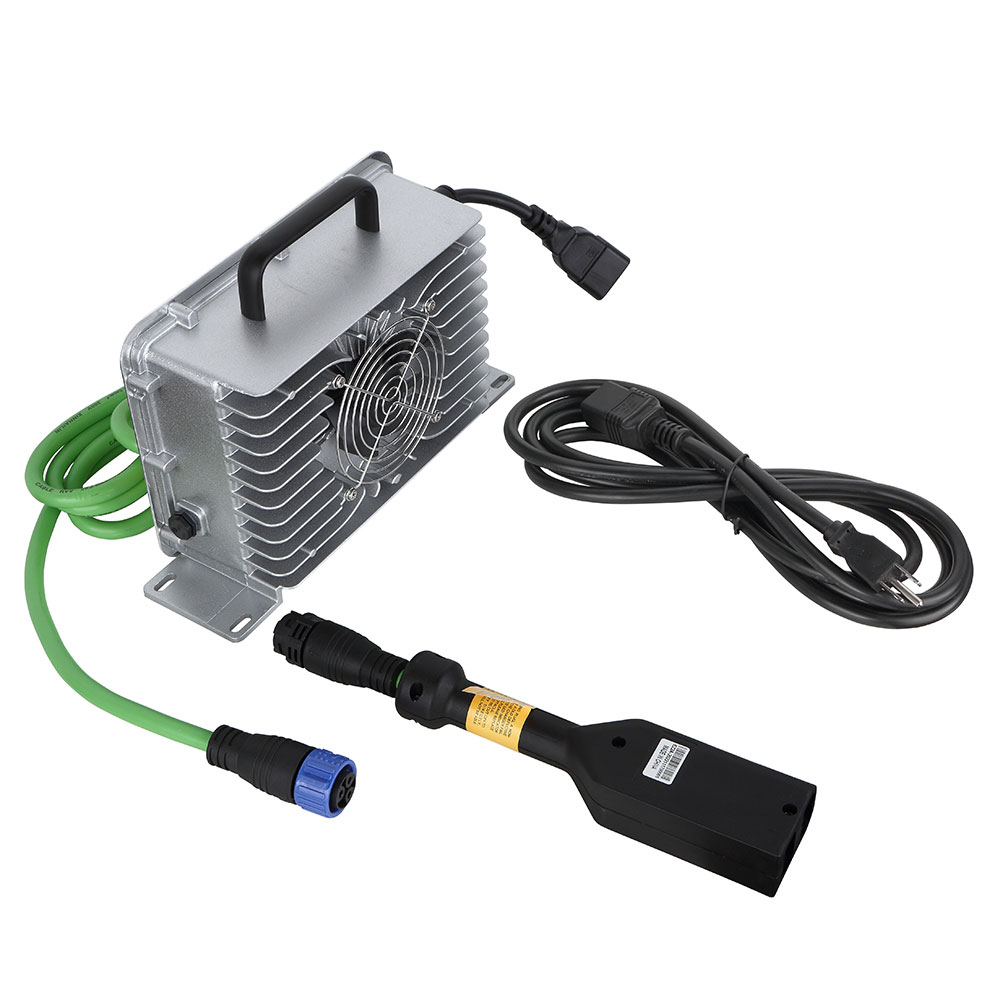

Color of DC cable: Black, Green, Yellow…
Length of AC cable: 0.5m/1m/1.2m/1.5m/2.8m…..
Wire Gauge: 2*2.5mm² / 2*3.5mm²/2*4mm²…. (more wires if you choose some functions)

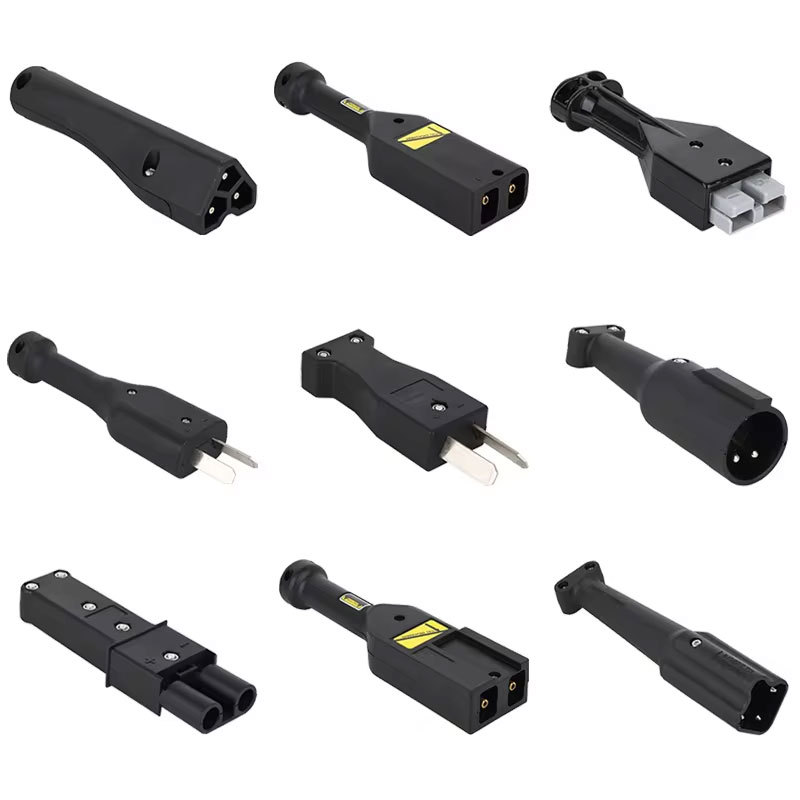

DC connectorss: Various brands and models of connectors and Ring terminals,alligator clip….
